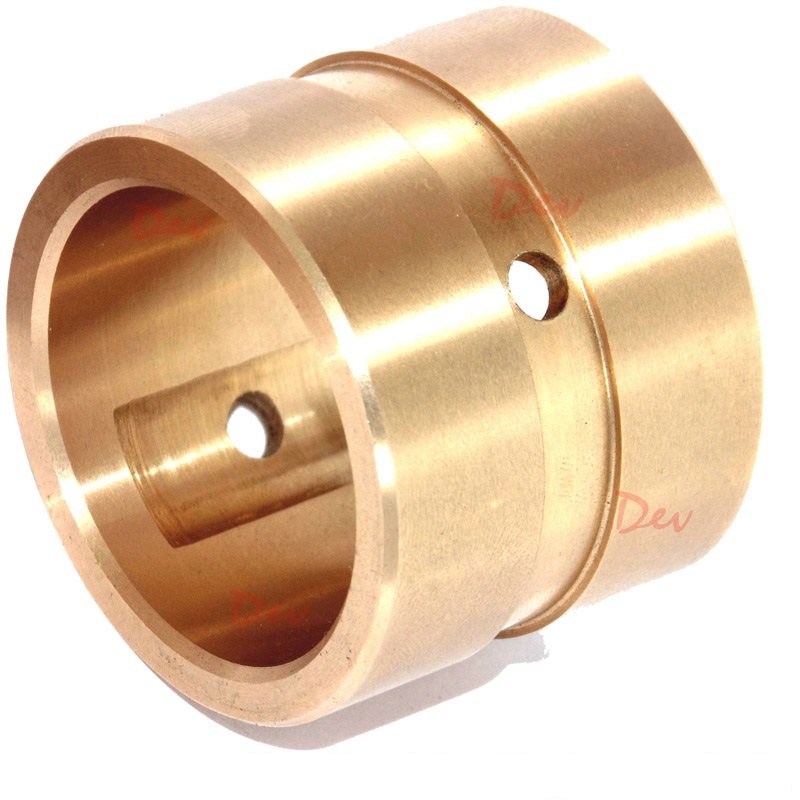

About Gun Metal And Bronze Bush
We are manufacturer and supplier of Bronze & Gunmetal Bushing and our product is made up of good quality. Bushes, includes Gunmetal, Bronze, Leaded Bronze, Leaded Tin Bronze and Tin Bronze.These Bronze metal products are widely demanded by the customers owing to their High ductile Strength, precision manufacturing, and reliability.
These products can be procured by the clients at industry leading rates and they can customize their orders according to their needs and specifications.
Our products are high in demads from developed countries likes US, Europe and Australia due to our high Material quality, Dimentional accuracy and shell concentricity.
- Pocket-friendly prices
- Varied patterns
- Completely Tested ((Materail, Dimentional, DP)
We manufacture & Export Plain, Thinwalled, Cut Type as well as Flange bushings in various metals & composition. We manufacture bushings for Automobiles (Cars, Trucks, Tractors) Diesel Engines, Marine Engines, Railways (Locomotives), Earth Movers, Compressors, Generators other rotating & reciprocating machinery. We manufacture these bushings Through Sand Casting, extrusion or Centrifugal Casting which enables us to manufacture Bushings in Large (Bulk) quantity as well as in small quantity in some of the Products.
Leaded Tin Bronzes
Leaded tin bronze has similar uses as tin bronze but is specified when better machinability and/or pressure tightness is needed.
- Medium pressure hydraulic & steam to 550 F
- Marine and ornamental castings
- High-pressure hydraulic and steam equipment
- Structural castings
- Lead screw nuts
- Heavy duty bearings
- Pump pistons
High Leaded Tin Bronzes
The high leaded tin bronzes contain the most widely used bearing bronze alloy C932 (also known as SAE 660). Widely available and somewhat less expensive than other bearings alloys – it is known for its unsurpassed wear performance against steel journals. It can be used against unhardened and not perfectly smooth shafts. Lead weakens these alloys but imparts the ability to tolerate interrupted lubrication. It also combines favorable antifriction properties with good load-carrying capacities and will conform to slight shaft misalignments.
- General purpose bushings
- Non-pressure applications
- High speed – light load bushings
- Mild acid applications
- Bearings and bushings with machinability and anti-seizing properties
- High speed – heavy pressure bushings
- Bridge parts
- Bearing plates
- Low friction – moderate pressure bushings
- Railroad applications
Bronze / Gun Metal Bush
|MATERIAL – LEADED TIN BRONZES||
C93700 SAE 64 E10 ASTM 3A 85SN5PB5ZN5 C83600 SAE 40 B5 ASTM 4A 80SN10PB10
|MATERIAL – HIGH LEADED TIN BRONZES||
C93200 C932 SAE 660 A-932 ASTM 3B 83SN7PB7ZN3 C90500 C905 SAE 62 ASTM 1A 88SN10ZN2 C90700 C907 SAE 65 89SN 11
10mm to 300mm
10mm – 150mm
PLAIN BUSH, THIN WALLED, CUT TYPE, FLANGED BUSH
Copper Visible, Fully Finish, Semi Finish
Individual Box, Bulk, Loose
|Cross Index||Nominal Chemical Composition||Minimum Mechanical Requirements|
|CDA||Ingot||Former SAE||Former Federal||Former ASTM||Copper||Sn||Pb||Zn||Ni||Tensile (psi)||Yield (psi)||Elongation %||BHN @ 500 KG|
|LEADED TIN BRONZE|
